本系列电机是一种无需齿轮减速装置直接获得低转速高转矩的新颖同步电动机，电机为全封闭结构，其性能主要为转速恒定、振动小、噪声低和启动转矩大，电机在负荷、启/停、正/反转和堵转时其电流变化小。该电机具有一定的自锁转矩，如电机采用直流激磁，可大幅度的增加自锁转矩。该电机能瞬间启/停、正/反转和堵转，被广泛地使用在工业自动化、电动阀门执行机构、机床进给、医疗机械、包装印刷、纺织机械和热交换等场合。
The TDY motor is one king of totally enclosed motor, which can produce low speed and high torque directly without any gear head, and has many advantages such as constant output speed, low vibration&noise, high starting torque and impact current when starting, stopping, reversing and stalling. The TDY motors have certain holding torque, if is is excited by DC power, it will produce high holding torque, In addition, this TDY motor can start, brake, reverse and stall instantly. The TDY motors are mainly used as driving elements of low speed driving systems, such as instrument and meters, feed mechanism of lathes, rotary heat exchanger and actuator elements of open-loop control systems.

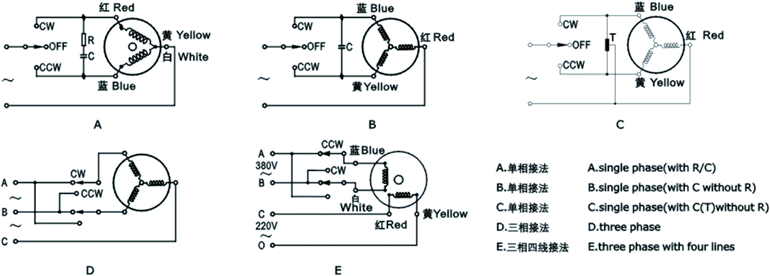

接线图
Wiring diagram
使用环境
Ambient condition
1．温度 (Temperature)：-250℃～+450℃
2. 相对湿度 (Relative humidity)：90%～95%
3．气压 (Atmospheric pressure)：74.8Kpa(2500m)
4．振动 (Vibration)：10～55Hz，双振幅 (double amplitude) 1.5mm
5．冲击 (Impact)：150m/s²峰值加速度 (peak acceleration)
